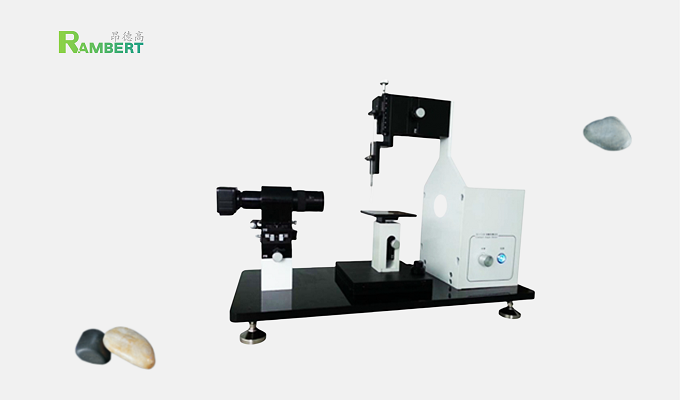

Water Contact Angle Tester_Surface Treatment Effect Analyzer

Введение продукта

Applications

Widely used in the analysis of surface treatment effects and cleanliness detection in industries such as spraying, coating, glass, aluminum foil, electronic components, and cleaning.

Features

Uniquely designed precision mechanical structure for multi-dimensional coordinated control of the sample stage, sample loading system, and imaging system.
The main frame is made of lightweight and high-strength aluminum alloy through CNC machining after professional design, with a plastic-sprayed surface.
The sample loading device uses a gear-rack and threaded lead screw to drive the syringe for liquid loading, with multiple specifications of liquid syringes available as options.
A patented sample lifting and translation combination platform that enables large-range movement without any shaking or tilting.
A camera and continuously zoomable lens, combined with a precision focusing positioning stage, enabling long-distance clear focusing.
Cold light source technology to ensure clear droplet contours.
Real-time video monitoring of the test area, capable of instant freezing and continuous capture of sample image information, with adjustable capture cycles.
The software provides various professional measurement and calculation methods, suitable for the analysis of multiple types of solid surfaces and droplet shapes.
The software can calculate contact angle values in multiple ways, and the left and right contact angles can be calculated and compared separately to achieve more accurate test results.
The software supports saving and importing images for re-analysis, as well as printing test data.

Specifications and Parameters

Contact Angle	Measurement Method	Static Drop Method
	Calculation Methods	Goniometry, Height Measurement, Base Point Method
	Measurement Results	Left Contact Angle, Right Contact Angle
	Measurement Range	0°～180°
	Measurement Error	±0.1° (θ/2 Method)
	Measurement Resolution	0.01°

Liquid Surface Tension	Measurement Method	Pendant Drop Method
	Measurement Results	Surface Tension
	Measurement Range	0.01～500 mN/m
	Measurement Accuracy	±0.1% (relative to the measured value)
	Measurement Resolution	0.01 mN/m

Solid Surface Energy	Estimation Method	OWRK Two-Liquid Method
	Estimation Results	Solid Surface Free Energy and Its Dispersive Force, Polar Force

Shooting Modes	Single Shooting	Automatically saves the frozen image as a JPG picture
	Continuous Shooting	1 frame/s, 2 frames/s, 10 frames/s (optional)

Optical Imaging System	Camera	1/2″ CMOS sensor, resolution 1024×768, frame rate 10fps
	Lens	0.7～4.5× continuous zoom, manual focusing, focusing range ±20mm
	Backlight	LED cold light source, continuously adjustable brightness

Sample Loading System	Sample Loading Method	Manual knob type
	Displacement Accuracy	1mm

Sample Stage	Platform Size	L100×W100mm
	Left-Right Movement	Manual, stroke ±43mm
	Front-Back Movement	Manual, stroke ±50mm
